HVAC Diagnostics in Dallas-Fort Worth
We find out what is actually wrong with your air conditioning or heating — and we are not the company that arrives with a replacement quote already written.
What Actually Fails on a DFW Air Conditioner

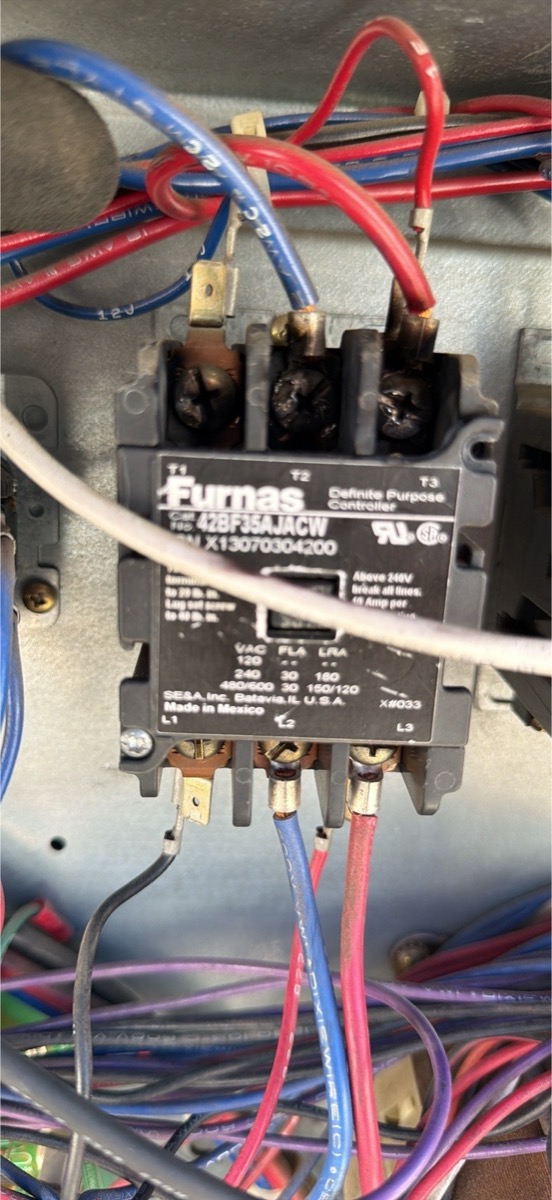

In rough order of how often we find them: a failed run capacitor, a burnt contactor, a condenser coil choked with cottonwood and dust, an airflow restriction at the filter or the return, and only then a refrigerant leak. Four of those five are electrical or mechanical faults on a system that still holds a full charge — which is why “you’re low on freon” is the diagnosis we most often have to undo.
A diagnostic visit exists to answer three questions in order. Is the system getting power and a call for cooling? Is it moving air? Is it moving heat? Those are three different failures with three different repairs, and they present almost identically from the hallway — the house is warm and the thermostat says 72. Before you book one, there are six checks you can make yourself in about ten minutes.

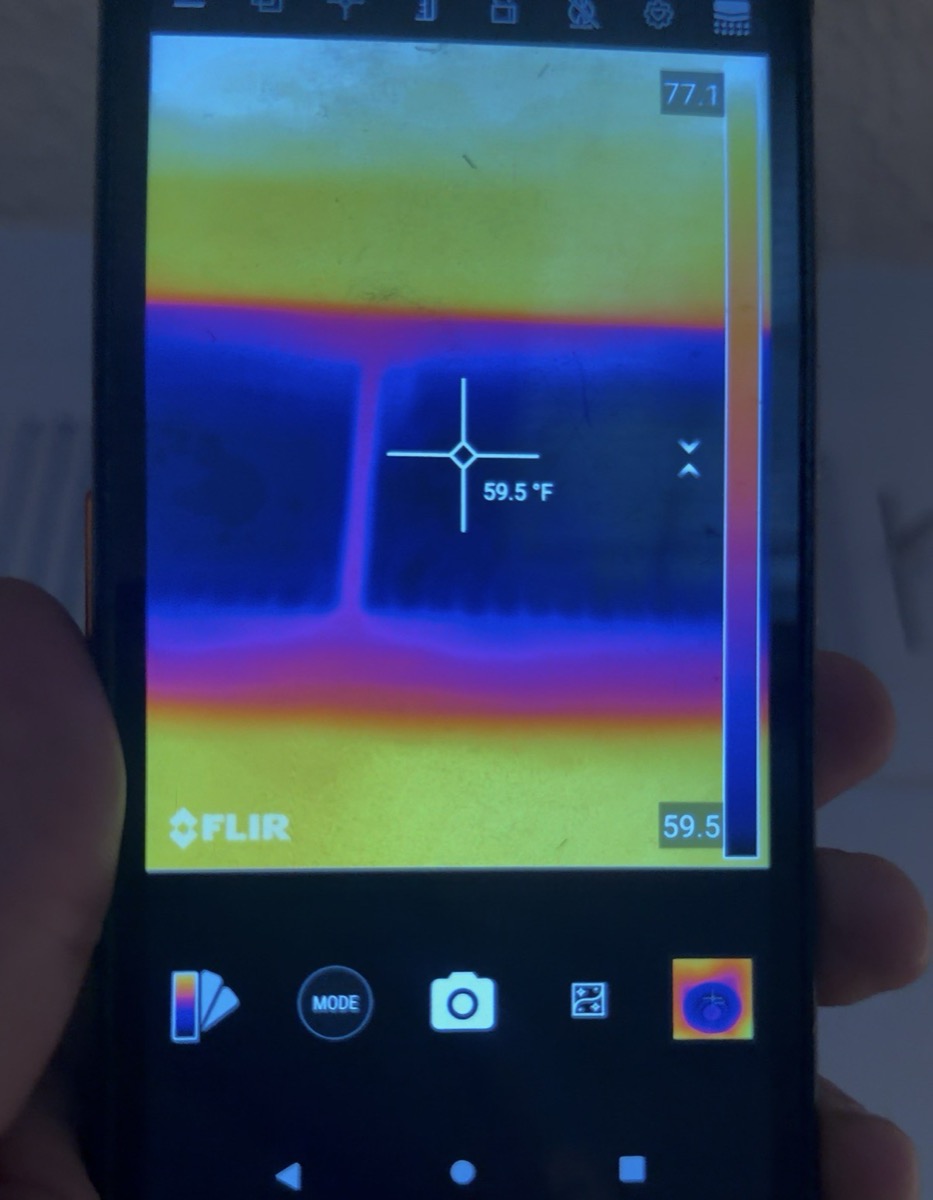

The measurement below is the sort of thing that settles it quickly. Supply air leaving a register at 59.5°F against a 77.1°F ceiling means the refrigeration circuit is doing its job; if the house is still hot, the problem is distribution, not the equipment outside.
Match Your Symptom to the Likely Cause
Find the row that sounds like yours before you call. Telling us which one it is shortens the visit and tells us what to bring.
| Symptom | Most likely causes | Notes |
|---|---|---|
| Outdoor unit hums but the fan doesn’t spin | Failed run capacitor, seized fan motor, or a contactor not pulling in cleanly | The single most common call we get in July. Shut it off — a compressor running without condenser airflow is how a cheap repair becomes an expensive one |
| Outdoor unit completely dead, indoor fan runs | Contactor, outdoor disconnect pulled, blown fuse at the air handler, or the low-voltage circuit | Check the disconnect box by the unit before calling — it does get switched off and forgotten |
| Runs constantly, house never gets cold | Dirty condenser, airflow restriction, refrigerant leak, or a system genuinely undersized for the load | On a 100°F DFW afternoon some of this is physics, not fault — we will say so if that is what we find |
| Ice on the refrigerant line or the indoor coil | Restricted airflow first, low charge second | Turn the system to FAN ONLY and let it thaw before anyone looks at it, or the real fault stays hidden under the ice |
| Starts and stops every few minutes | Overheating compressor, dirty coil, failing capacitor, or a thermostat reading a bad spot | Short cycling is a symptom with a long list — it needs measurement, not a guess |
| Weak air from the vents | Loaded filter, collapsed flex duct, blower wheel packed with dust, or closed returns | Often fixable the same visit and often the whole complaint |
| Water stain on the ceiling under an attic unit | Blocked condensate drain, failed float switch, or a rusted secondary pan | Treat this as urgent — the drywall is the cheap part of the damage |
| Breaker trips when the system starts | Shorted compressor windings, failing capacitor, or a damaged conductor | Do not keep resetting it. Two resets is diagnosis; ten is a fire risk |
| Heat won’t come on in winter | Ignition or flame-sense fault on a furnace, a failed sequencer on electric strip heat, or a reversing valve on a heat pump | DFW heating hours are short enough that these faults sit unnoticed until the first cold night |
| Burning smell at first heating cycle | Dust burning off the heat exchanger or strip heat — usually normal on the first run of the season | If it persists past twenty minutes or smells electrical, shut it down and call |
Four Checks Before You Pay for a Service Call
- Change the filter and look at the one you pulled out. If light does not pass through it, you have found at least part of the problem. A loaded filter starves the coil of air, which drops capacity, freezes the coil, and eventually looks exactly like a refrigerant fault. This one check resolves a meaningful share of “not cooling” calls at no cost.
- Check the thermostat properly. Fresh batteries, set to COOL, fan on AUTO, and setpoint at least three degrees below the room. Then confirm the little screen is actually calling — a thermostat that has lost its schedule will hold a setback temperature all afternoon and look like a dead system.
- Check the breaker and the outdoor disconnect. There are two places power can be interrupted: the panel inside and the pull-out disconnect box mounted next to the condenser. Reset a tripped breaker once. If it trips again, stop and call — something downstream is drawing current it should not.
- Walk the house and open the returns. Closed vents in unused rooms and furniture pushed against a return both raise static pressure across the system. That shows up as poor airflow, uneven rooms, and a blower working harder than it was designed to.
Still not right after those four? Call (469) 224-0577 and lead with what you found — filter condition, whether the outdoor fan is spinning, and whether there is ice anywhere. That is most of a diagnosis already.
We Diagnose and Maintain. We Don’t Sell You a New System.
This is a diagnostics and maintenance service, not a replacement business. We test, measure, and repair components: capacitors, contactors, fan and blower motors, condensate systems, thermostats and controls, coil cleaning, and the electrical faults that account for most summer breakdowns. We also tell you plainly when a system is genuinely at the end of its life.
What we do not do is quote you a new system. That matters because of how this trade usually works: the company diagnosing the fault is very often the company selling the replacement, and that is a conflict of interest sitting in your hallway. A capacitor is a small repair. A new condensing unit is not. When the same person decides which one you need and profits from the answer, you are entitled to a second opinion — and quite often we are that second opinion.
If the honest answer is that your system should be replaced, you get that answer, the reasoning behind it, and the measurements it rests on. Then you take it to whoever you like for the install. Nobody here earns anything from that outcome, which is exactly why the answer is worth something.
“You’re Low on Refrigerant” Is Not a Diagnosis
A sealed refrigeration circuit does not consume refrigerant. If a system is low, it leaked — and a top-up without finding the leak is buying the identical repair again next summer, plus the cost of the gas twice.
This is worth knowing because it is the most commonly oversold item in residential HVAC. The symptom that gets it blamed — poor cooling on a hot day — is produced just as readily by a filthy condenser, a weak capacitor letting the compressor struggle, or an airflow restriction indoors. Those are cheaper, more common, and testable in minutes.
So when a charge is genuinely low, the useful work is finding out where it went: the service valves, a coil, a braze joint, or a line set run through a wall. That is a longer conversation than adding refrigerant, and a considerably better one. If somebody has topped your system up two summers running without ever mentioning a leak search, you have been sold gas rather than a repair. Refrigerant work on our visits is done by an EPA Section 608 certified technician, and we are insured.
A Weak System Fails on the Hottest Day, Not a Convenient One
Marginal faults hide all spring. They surface the first week the afternoon highs sit over 100°F — which is also the week every phone in the trade is ringing.
- Same-day diagnosis on calls before 2 PM
- Measurements and readings shown to you, not just a verdict
- Flat-rate quote in writing before any work starts
- No replacement pitch attached to the diagnosis
Can’t Call Right Now?
Submit anytime — if it’s outside dispatch hours, we’ll follow up and get you on the schedule for your next convenient day.
How an HVAC Diagnostic and Repair Are Quoted
A $90 on-site diagnostic first, then one flat-rate repair price in writing before any part is ordered. The $90 is waived when you go ahead with the repair. Nothing is quoted by phone — “it's blowing warm” is a capacitor on one system and a refrigerant leak on the next, and only measurements tell them apart.
| Stage | What happens | How it's priced |
|---|---|---|
| Diagnostic visit | Electrical tests on capacitors, contactor and motors, airflow and temperature split, condenser and drain checks; gauges only when the charge is actually in question | $90, waived when you approve the repair |
| Component repair | Capacitors, contactors, fan and blower motors, thermostats, condensate drains and pumps, coil cleaning | One flat price for parts and labor, agreed on site before work starts |
| Refrigerant leak | Leak search first; recharge only once the leak is found and dealt with | Quoted after the leak is located, never as an open-ended top-up |
| Commercial maintenance | Scheduled visits for rooftop units and small commercial sites | Contracts from $349 per year per location |
You see the readings the quote rests on. If the numbers say the system is not worth repairing, you hear that before anything is ordered — and since we do not install systems, there is no second invoice waiting behind that answer.
Repair or Replace an Air Conditioner
Most summer breakdowns are a component, and a component is worth repairing on almost any system. Replacement becomes the honest answer when the failure is in the sealed system of an old unit, when the same leak keeps coming back, or when the system runs on refrigerant that is no longer produced.
What actually decides it:
- What failed. Capacitors, contactors, motors, drains and controls are routine repairs. A failed compressor or a leaking evaporator coil on an aging system is where the conversation changes.
- Which refrigerant it uses. Systems built for R-22 run on a refrigerant that is no longer manufactured in the US, so any repair that needs a meaningful recharge gets harder to justify every year.
- Whether it is a repeat. A system that has needed refrigerant two summers in a row has a leak that was never found. Fixing the leak can be worth it; buying gas a third time is not.
- How it has been running. A system that short-cycles, never reaches setpoint on a 100°F afternoon, or has had its condenser blanketed for years has usually worn its compressor along the way — the measurements show it.
We do not sell replacement systems, so the recommendation costs us nothing either way. If replacement is the better spend, you get the readings and the reasoning in writing and take them to any installer you choose.
What North Texas Does to HVAC Equipment
Equipment here does not fail the way the manuals imagine. Three local factors do most of the damage.
Heat load and run hours. A DFW condenser runs long cycles for five months a year in ambient temperatures its capacitors were rated at the edge of. Capacitors are heat-sensitive by nature, which is why they are the most replaced part in this market by a wide margin, and why a unit that was fine in May quits in the second week of July.
Attic air handlers. A great many DFW homes put the air handler and its condensate pan in the attic, directly above finished ceilings. That is convenient for the builder and unforgiving later: a drain line that clogs with algae does not spill onto a garage floor, it spills into drywall. The float switch that should prevent this is a five-dollar part that fails silently, so on a maintenance visit it gets tested rather than admired.
Spring debris. Cottonwood, oak pollen and construction dust mat into the outdoor coil through April and May. Nobody notices, because the system is barely working. The bill arrives in July as a unit that cannot reject heat, runs constantly, and gets diagnosed by somebody else as low on refrigerant.
Rooftop Units and Small Commercial Sites
We also cover light commercial: rooftop package units, small split systems in offices and retail suites, and mechanical rooms where refrigeration and comfort cooling sit side by side. Commercial kitchens and walk-ins are a separate line of work — see commercial equipment repair and walk-in cooler repair.
Rooftop package units
Electrical faults, economiser and control problems, belt and blower issues, coil cleaning, and condensate. Access and safety on the roof is part of the job, not an extra conversation. Which cleaner belongs on which coil is not interchangeable — our coil cleaning guide covers the products we carry and when each one is the right call.
Offices and retail suites
Tenants complain about comfort long before equipment fails. Establishing whether you have a fault, an airflow balance problem, or a load that grew when the floorplan changed is the useful first step.
Multi-site maintenance
If you run several locations, scheduled coil cleaning, filter changes, drain treatment and capacitor checks cost less than the emergency calls they prevent. Preventive contracts start from $349/year per location.
What DFW Homeowners Say
4.8★ rating · 430+ verified Google reviews
I contacted this company for the service and repair of the air conditioner. They are professional repairmen and they know their work well. I am satisfied with the service and repair of my air conditioner.
Excellent service, Professional, Courteous, Correct root cause analysis and solution
Air conditioner repair is the best ever. I repaired my home air conditioner and the price was very reasonable
Left on our Google Business Profile by real customers. Read all 430+ reviews on Google.
HVAC Diagnostic Questions
What does an HVAC diagnostic visit actually include?

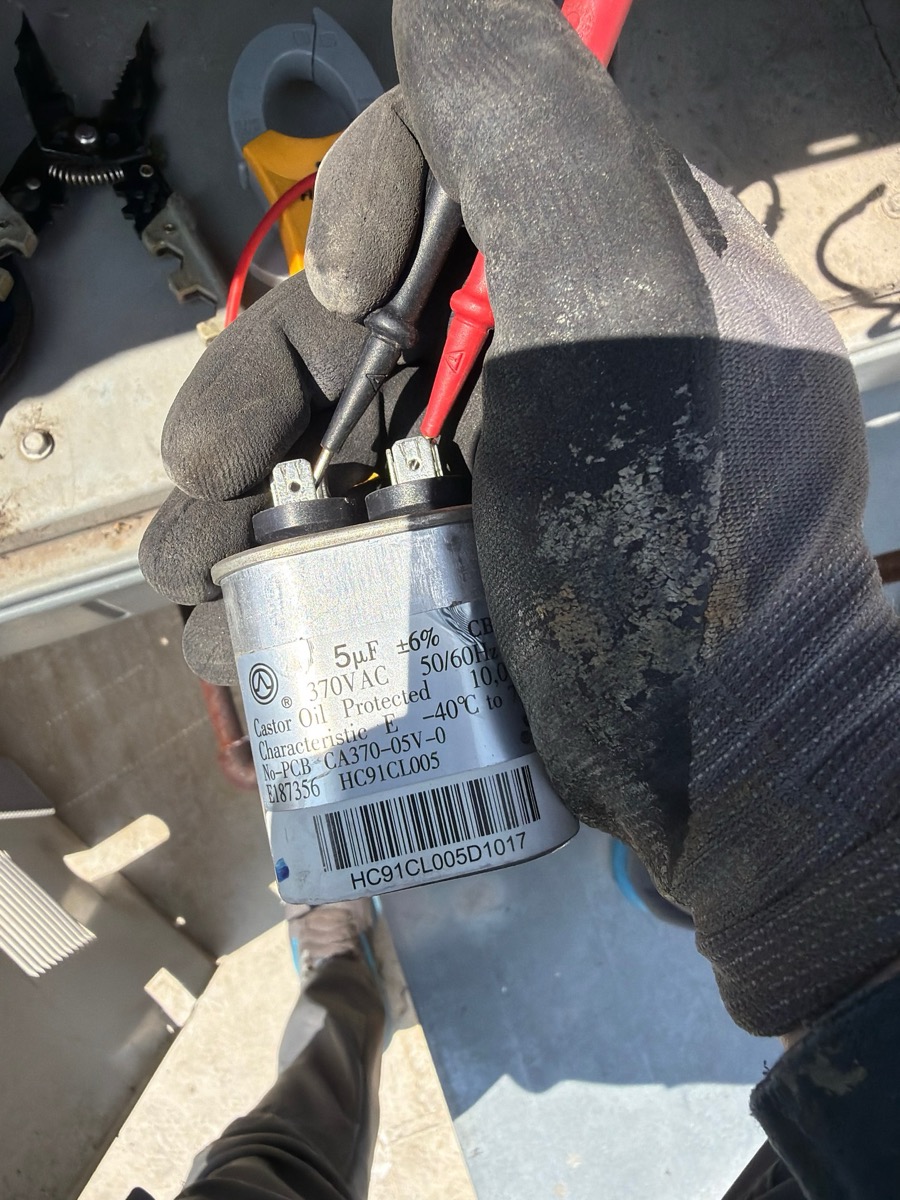

Electrical testing at the disconnect and the contactor, capacitor measurement under load, temperature split across the coil, static pressure and airflow assessment, condensate and drain check, and a look at the condition of both coils. You get the readings, not just a verdict. It is a $90 on-site diagnostic, and that fee is waived when you go ahead with the repair.
My outdoor unit is humming but the fan isn’t turning. What is that?
Most often a failed run capacitor, sometimes a seized fan motor or a contactor not making proper contact. Switch the system off at the thermostat until someone looks at it. A compressor that keeps running while the condenser fan is stopped has no way to reject heat, and that turns an inexpensive part into an expensive one fairly quickly.
There is ice on the pipe going into the house. Should I keep it running?
No. Switch the system to FAN ONLY and let the ice melt completely, which usually takes a few hours. Running a frozen system risks liquid refrigerant reaching the compressor. Icing is almost always an airflow restriction first and a low charge second, and nobody can tell which while it is buried under ice.
Do you replace air conditioning systems?
No, and that is deliberate. We are a diagnostics, repair and maintenance service. We will tell you honestly when a system is finished and explain why, but the replacement quote comes from somebody else. It means our diagnosis has nothing riding on the answer being expensive.
Another company said I need refrigerant every year. Is that normal?
It is common and it is not normal. A sealed system does not use refrigerant up. If it needs topping up annually, it has a leak that nobody has located, and you are paying for the same repair repeatedly. Finding the leak is the actual work; adding gas is postponing it.
How much does HVAC repair cost?
We don’t publish repair prices and we don’t quote them by phone. The $90 diagnostic comes first, then a flat-rate quote in writing before any work starts, and the diagnostic fee is waived if you proceed with the repair. The same complaint can be a capacitor or a compressor, and any number offered before someone has measured the system is a guess.
How often should an air conditioner be serviced in Texas?
Twice a year suits this climate better than once: before cooling season and before heating season. Our run hours are long and our spring debris load is heavy, so the two things that pay for themselves are a clean condenser coil and a clear condensate drain. Filters need attention considerably more often than that, particularly in homes with pets.
There’s a water stain on the ceiling under my attic unit. How urgent is it?
Urgent. That is a blocked condensate drain, a failed float switch, or a corroded secondary pan, and the water has already found its way through the ceiling. Turn the system off and call. The drywall repair is usually the cheapest part of what happens if it keeps running.
Do you work on heat pumps and furnaces, or only air conditioning?
Both. Gas furnaces, electric strip heat and heat pumps, including reversing valve and defrost control faults. North Texas heating seasons are short, which means heating faults typically sit undetected from March until the first genuinely cold night in November.
Do you offer same-day HVAC diagnostics in DFW?
Yes. Dispatch runs Monday to Friday 8 AM–4 PM and Saturday 8 AM–1 PM, and a call placed before 2 PM on a dispatch day gets a same-day visit. Our core area covers Southlake, Westlake, Colleyville, Grapevine, Trophy Club, Flower Mound, Coppell, Keller, Carrollton and Highland Village.
